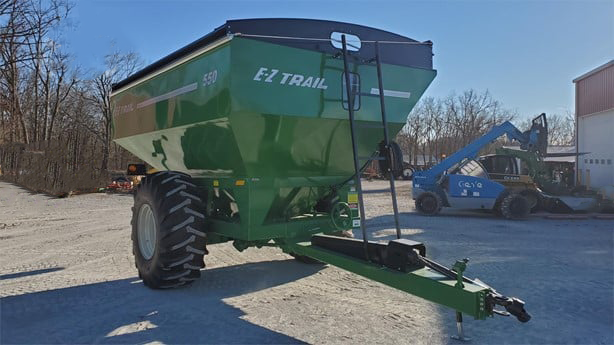

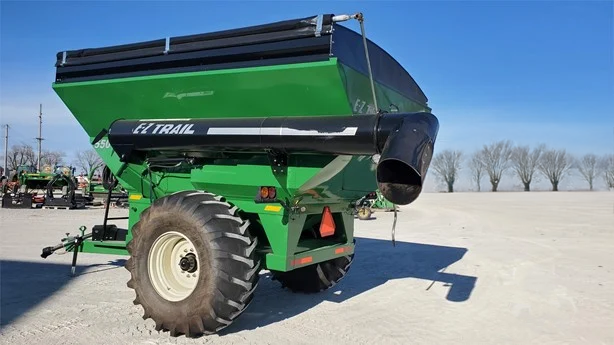

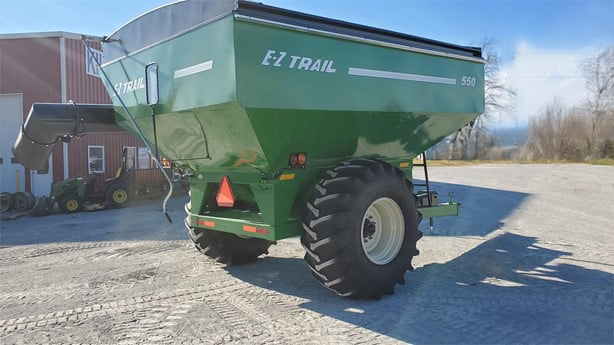

2024 E-Z Trail 550

The 2024 E-Z Trail 550 grain cart is a compact and reliable option for farms needing efficient grain transfer without the scale of larger carts. E-Z Trail is known for durable and straightforward designs, and the 550 exemplifies this philosophy.

Capacity is approximately 550 bushels (14 metric tons), ideal for smaller to mid-sized combines or operations preferring more frequent unloading. The 14-inch diameter corner auger provides an unloading rate of approximately 235 bushels per minute with a discharge height of around 12.5 feet — suitable for most semi-trucks and wagons.

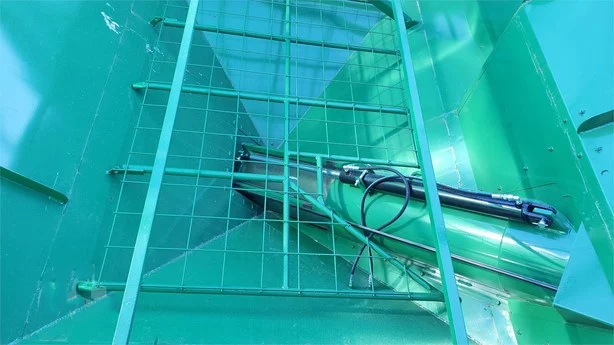

Single PTO-driven auger system for simplicity and reliability. The perforated front allows excellent visibility of grain level inside the box when loading on-the-go. An internal sliding flow control door protects the outer auger tube from wear and allows precise control of grain flow for cleanout. Forward-lean 14-inch flighting with optional stainless steel edge for extended wear life.

Built on a single-axle chassis with 23.1-26 R1/R3 tires. Adjustable wheel tread width from 94 to 120 inches. Box dimensions approximately 9'10" wide by 13'6" long with 3-1/4" high-strength spindles.

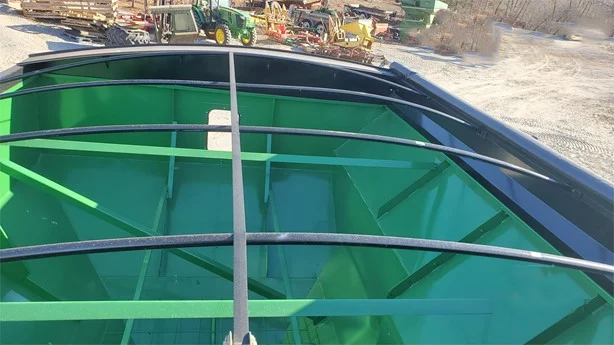

Available features include Weatherguard roll tarp, tail and work lights, optional hydraulic spout direction control, optional Weigh-Tronix integrated scale, and optional hydraulic drive kit. Available in red, green, or blue.
