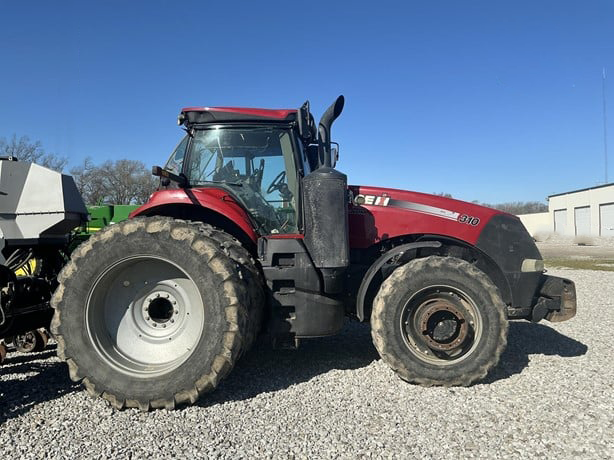

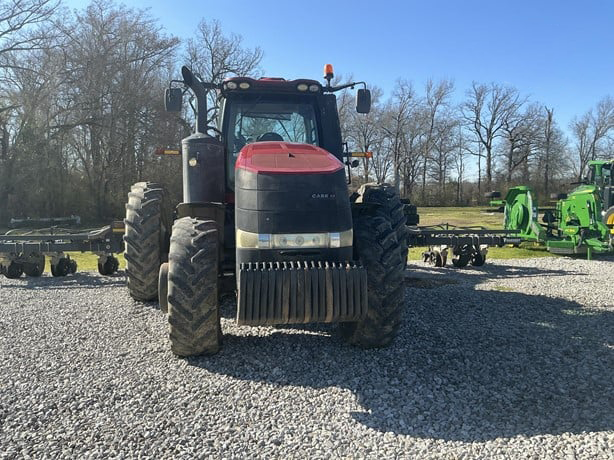

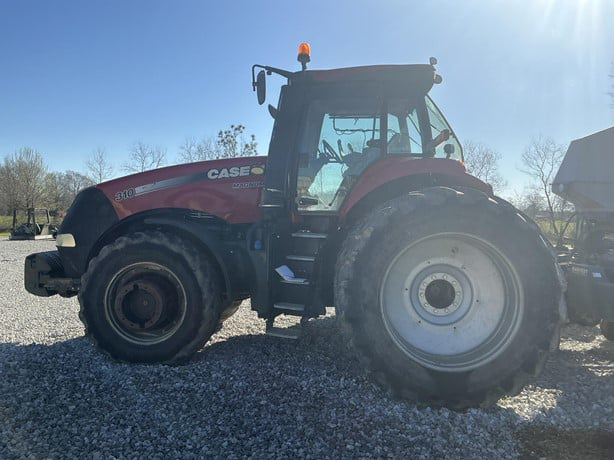

2015 Case IH Magnum 310

The 2015 Case IH Magnum 310 is a powerful and highly versatile row-crop tractor featuring a Tier 4 Final compliant engine. A key model in Case IH's Magnum series, it delivers high horsepower, advanced technology, and operator comfort for heavy tillage, planting, and transport.

Powered by an FPT 8.7-liter (531 cu in) 6-cylinder Tier 4 Final (T4B) diesel using SCR technology with Diesel Exhaust Fluid (DEF), allowing the engine to be optimized for power and fuel efficiency. Rated engine power is 310 hp (228 kW) at 2000 rpm with a Power Boost up to 380 hp (280 kW). PTO horsepower is 265 hp (198 kW). Fuel capacity is approximately 163 gallons (617 L). DEF tank capacity is approximately 26 gallons (99 L).

Transmission options include the 19-Speed PowerDrive Full Powershift (19 forward, 4 reverse, up to 30 mph) for smooth shifting and consistent power, or the optional CVXDrive Continuously Variable Transmission for infinite speed control and automatic engine RPM optimization.

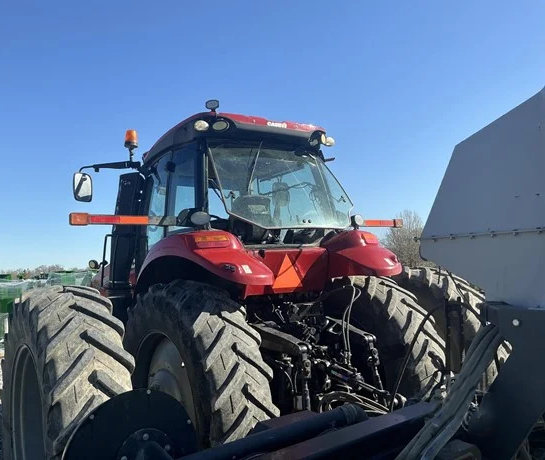

The closed-center PFC hydraulic system delivers 44 gpm (166 L/min) standard, with optional high-flow pumps up to 75 gpm (282 L/min). Standard 4 electro-hydraulic rear SCVs with options for 5 or 6. Category III/IIIN rear 3-point hitch with approximately 15,900 lbs (7,210 kg) lift capacity. Optional front 3-point hitch (9,426 lbs) and front PTO. Independent rear PTO at 1000 RPM with optional 540/1000 RPM.

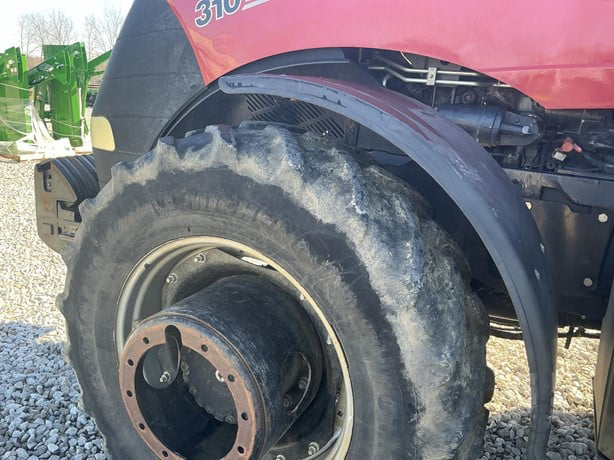

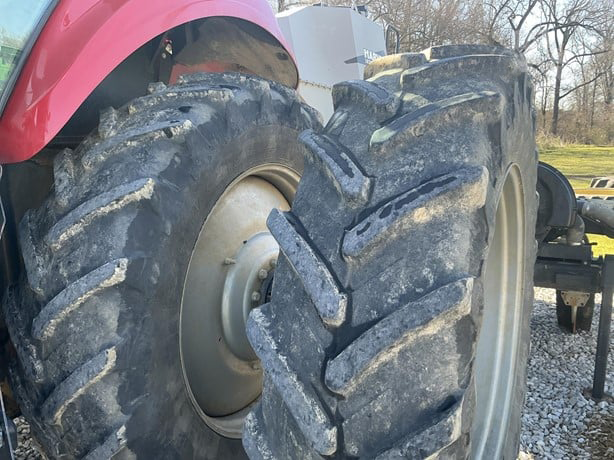

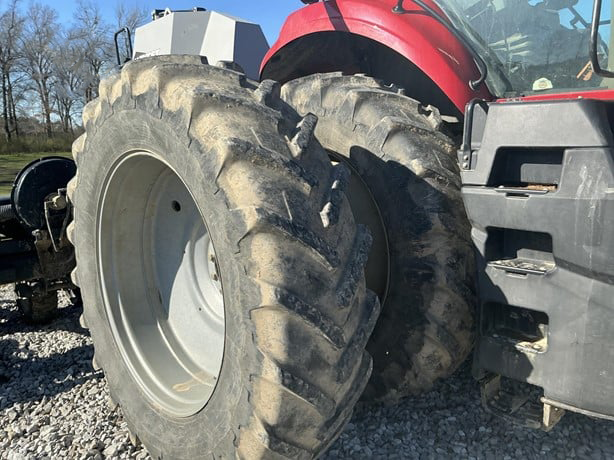

Standard MFWD with optional Class 5 suspended front axle for improved ride, traction, and control. Wheelbase 120 inches. Base weight approximately 28,840 lbs. Large tire options including 620/70R42 rear duals.

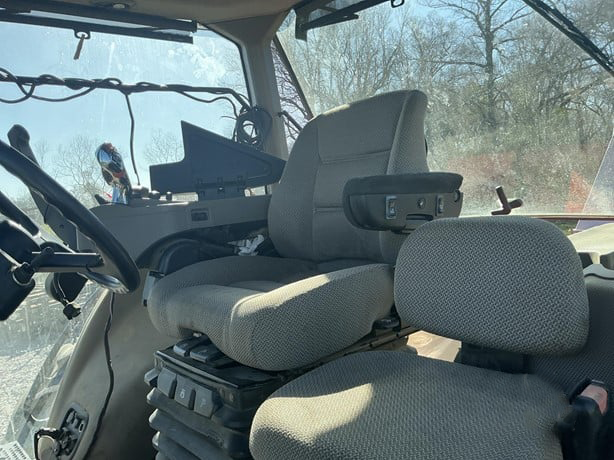

The spacious Surveyor cab offers 68.5 sq ft glass area, MultiControl Armrest, AFS Pro 700 display, AFS AccuGuide™ autosteering, optional AccuTurn™ headland management, and full ISOBUS compatibility.
