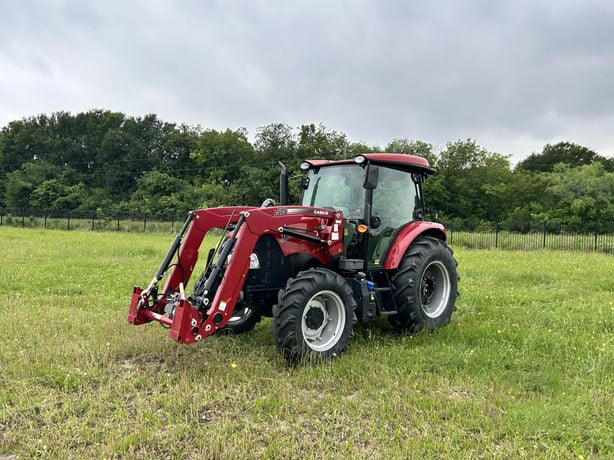

2022 Case IH Farmall 105A

The 2022 Case IH Farmall 105A is a robust and versatile utility tractor from Case IH's A Series, designed for broad tasks on mid-sized farms, hay operations, and large properties. Known for its practical design, fuel efficiency, and good power balance.

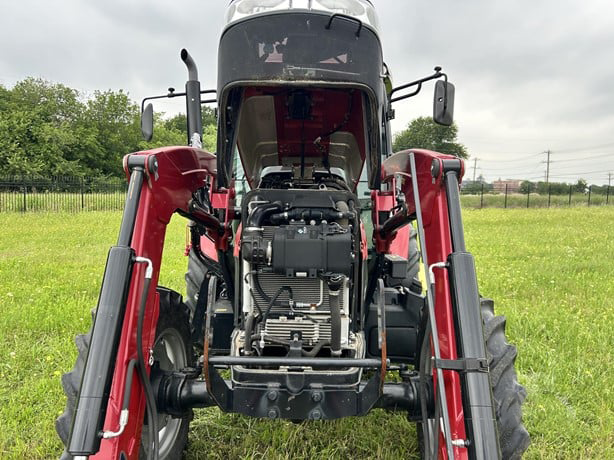

Powered by an FPT 3.4-liter (207 cu in) 4-cylinder turbocharged and aftercooled diesel. Meets Tier 4B/Final (Stage V) emissions using only a Diesel Oxidation Catalyst (DOC) and Cooled EGR (CEGR) — no DPF and no regeneration process, reducing maintenance and eliminating downtime. Rated engine horsepower is 112 hp (83.5 kW). PTO horsepower is 92 hp (68.6 kW) — a strong output for this class, capable of running larger balers, mowers, and tillers. Rated engine speed is 2300 RPM. Fuel capacity approximately 29 US gallons (110 L) for cab models. DEF tank approximately 2.9 gallons (11 L).

Transmission options include the standard 12x12 Power Shuttle (12 forward, 12 reverse) with electro-hydraulic wet clutch for smooth clutchless direction changes, or an optional 12x12 Power Shuttle with Creeper for 20x20 total speeds at extremely slow rates for specialty applications. Electrohydraulic MFD engagement. Max speed approximately 25 mph (40 kph).

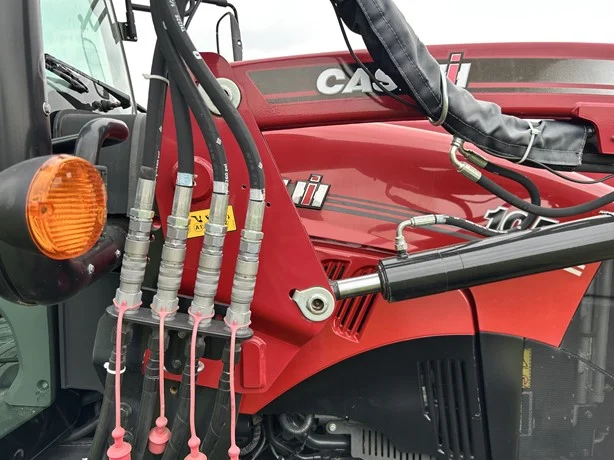

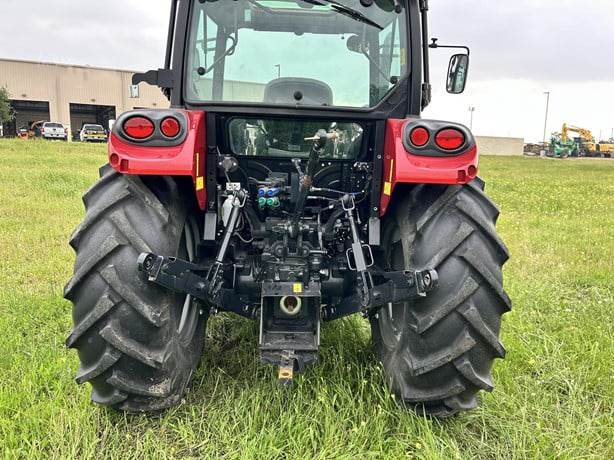

The open-center hydraulic system delivers 16.9 gpm (64 L/min). Standard 2 rear remote hydraulic valves with option for 3. Category I/II rear 3-point hitch with mechanical draft control and top-link sensing. Rear lift capacity approximately 4,299 lbs (1,950 kg). Independent rear PTO with wet clutch at 540 RPM, with optional 540/540E economy RPM for fuel efficiency during light PTO work.

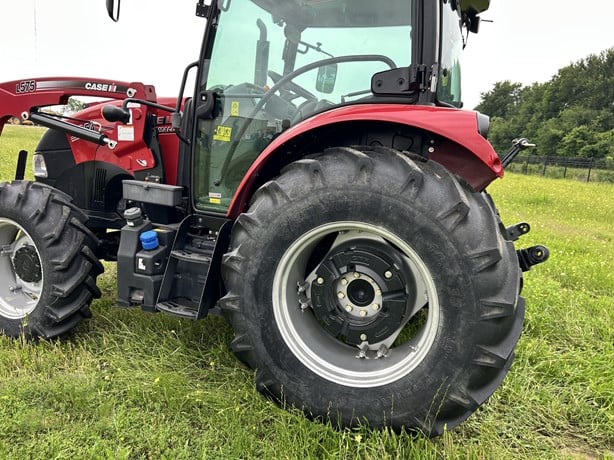

Available in 2WD and MFWD configurations. Hydrostatic power steering. Hydraulic wet disc brakes. Rear mechanical differential lock. Wheelbase approximately 89 inches (2,260 mm). Operating weight approximately 8,492 lbs with cab. Common tire sizes: 14.9R24 front, 18.4R34 rear.

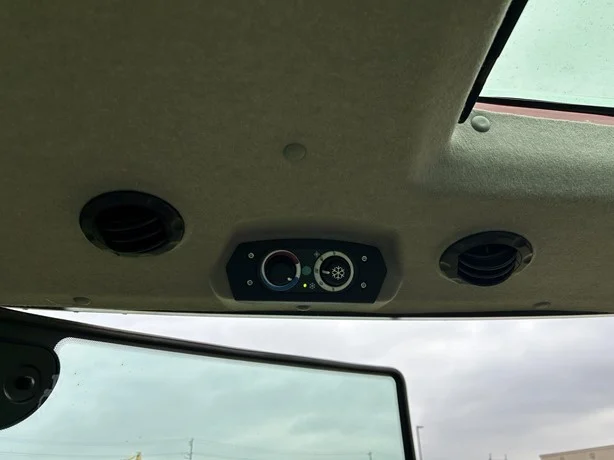

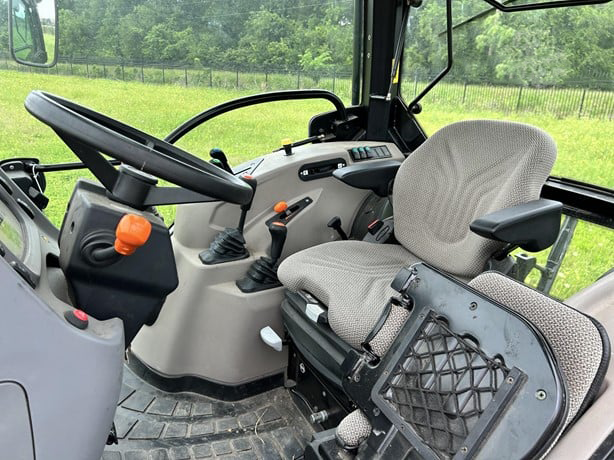

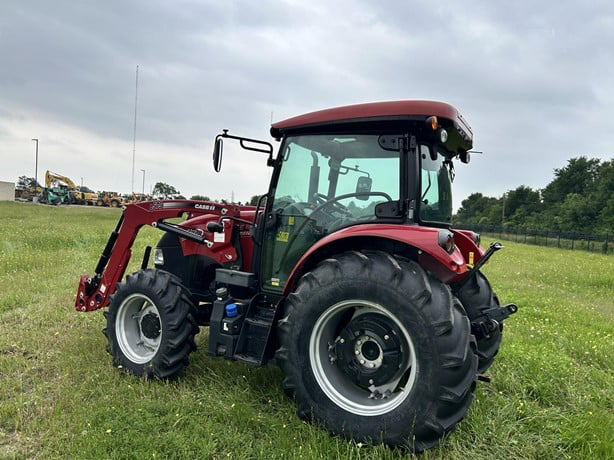

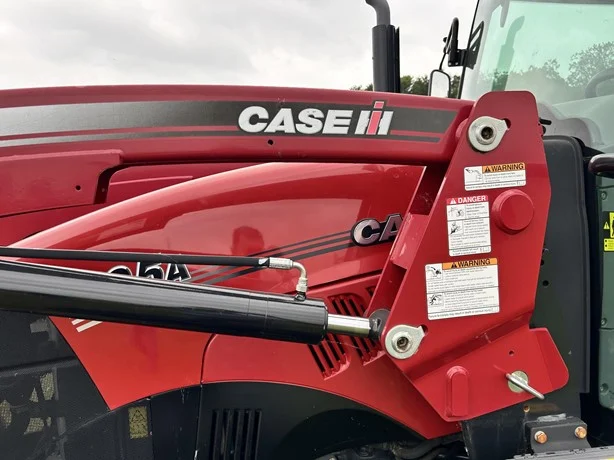

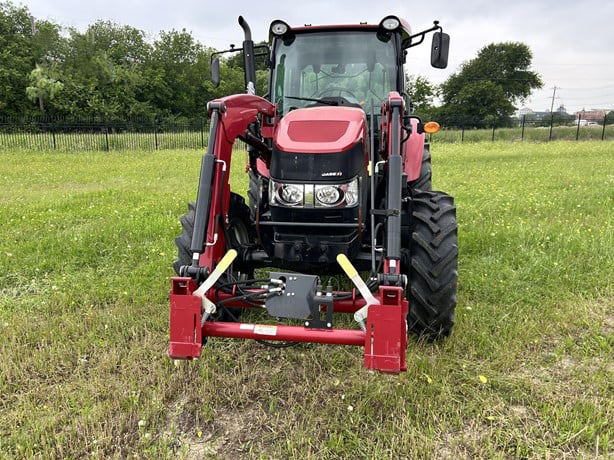

ROPS standard or optional factory-installed deluxe cab with HVAC, air suspension seat, large glass area, and quiet operation. Compatible with Case IH L575 front loaders (up to 3,174 lbs / 1,440 kg). Optional engine reversing fan available on poultry configurations.
