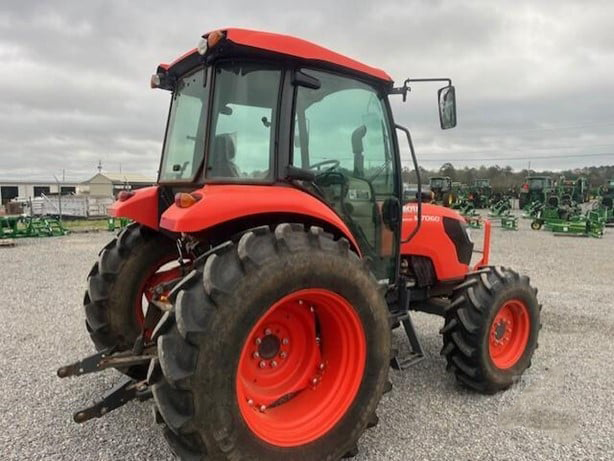

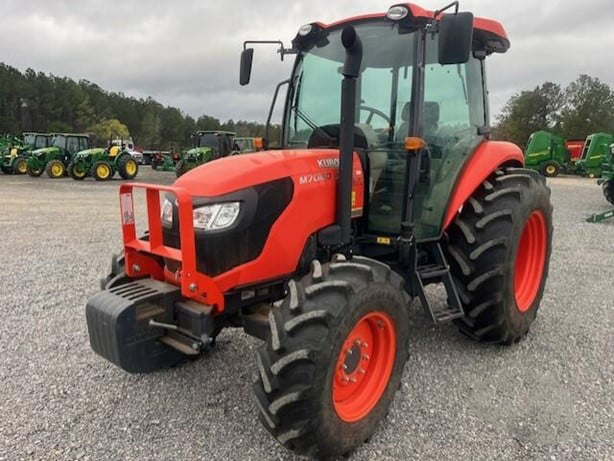

2023 Kubota M7060

The 2023 Kubota M7060 is a popular utility tractor offering a good balance of power, efficiency, and comfort for a variety of tasks on small to mid-sized farms, hay operations, and general property maintenance. Part of Kubota's M60 Series, known for reliability and maneuverability.

Powered by a Kubota V3307-CR-TE4 3.331-liter (203 cu in) 4-cylinder turbocharged diesel with Common Rail System (CRS). Meets Tier 4 Final/Stage V emissions via DPF, DOC, and EGR. Gross engine horsepower is 71 hp (53.0 kW). PTO horsepower is approximately 64 hp (47.7 kW) at 540 rpm. Rated engine speed is 2400 rpm. Fuel tank capacity is 18.5 US gallons (70 L) for ROPS or 23.8 gallons (90 L) for cab models.

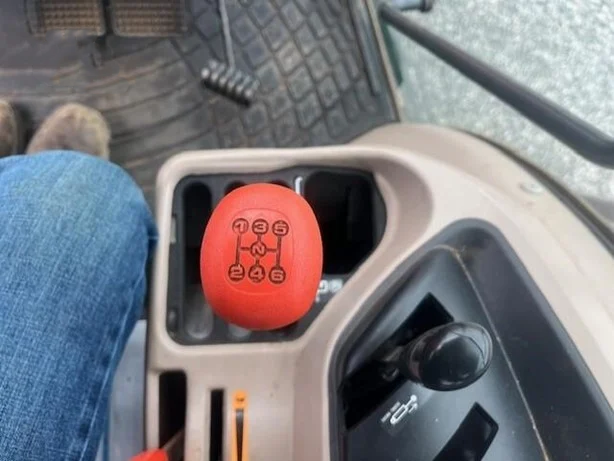

Transmission options include 8F/8R Hydraulic Shuttle (HD models) with synchronized gear drive and hydraulic clutchless direction changes, or 12F/12R Hydraulic Shuttle (HD12 models) with more gear choices for varied field speeds and heavy trailer hauling. Optional creeper gear set for very slow speeds. Max speed approximately 19–25 mph.

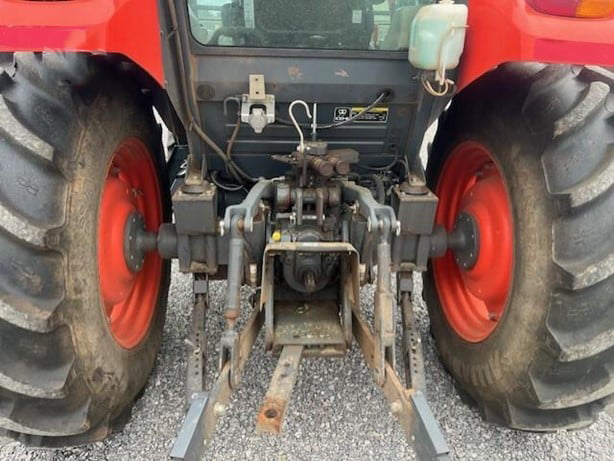

Open-center hydraulic system delivers approximately 11.0 gpm (41.6 L/min) for F8/R8 models or 16.2 gpm (61.5 L/min) for F12/R12 models. Standard 1 rear remote valve with options for 2 or 3. Category I/II rear 3-point hitch with position and top-link draft sensing. Rear lift capacity approximately 3,307 lbs (1,500 kg). Live independent PTO with electro-hydraulic wet disc clutch and brake. Standard 540 RPM with 540E economy option achieving 540 PTO RPM at lower engine RPM for fuel savings.

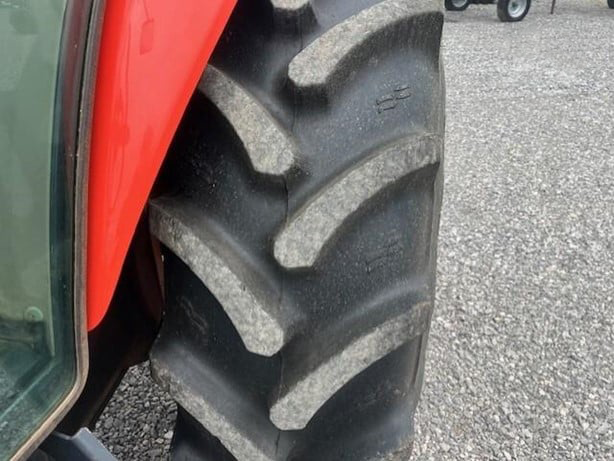

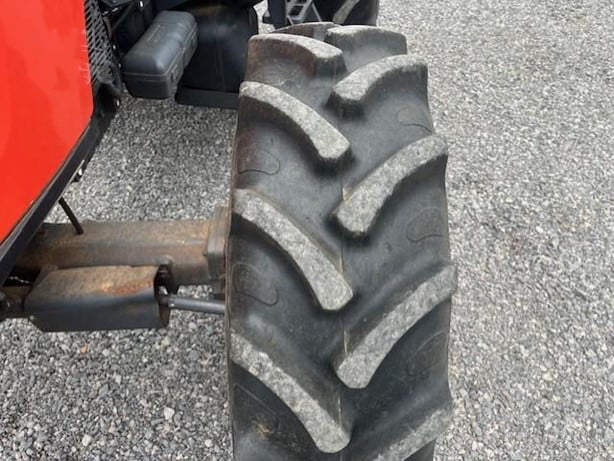

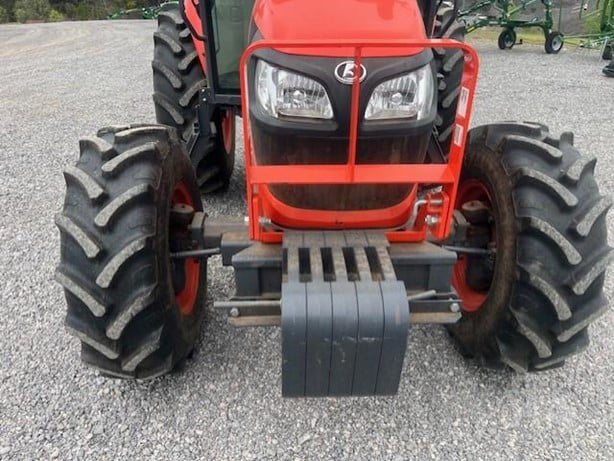

Available in 2WD and 4WD configurations. 4WD models feature bevel-gear front axle with increased oscillating angle for uneven terrain. Hydrostatic power steering. Mechanical or hydraulic wet disc brakes (model dependent). Rear mechanical differential lock. Operating weight approximately 5,027–5,248 lbs. Standard tire sizes: 9.5-24 front, 16.9-30 rear. Turning radius 11.8 ft (3.6 m) with brakes.

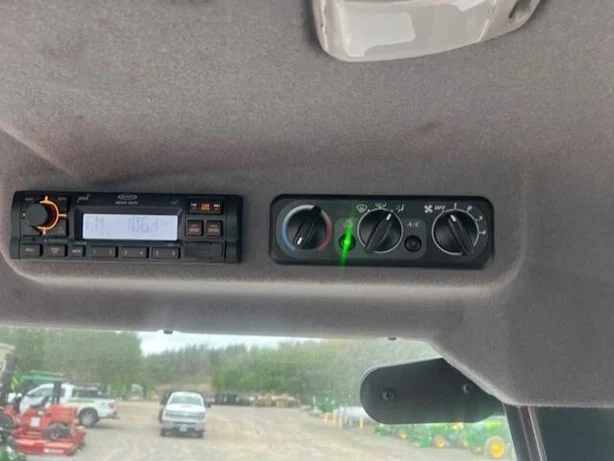

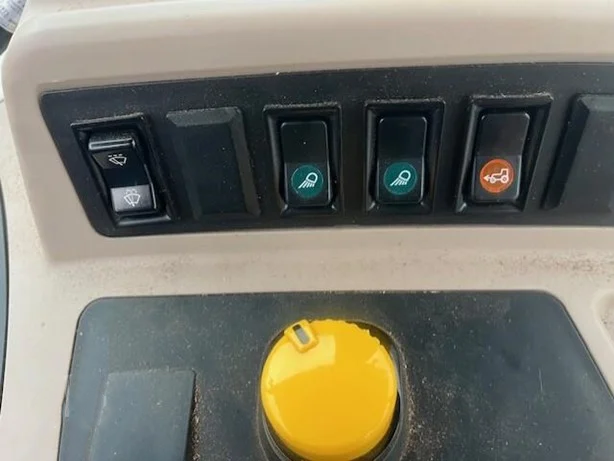

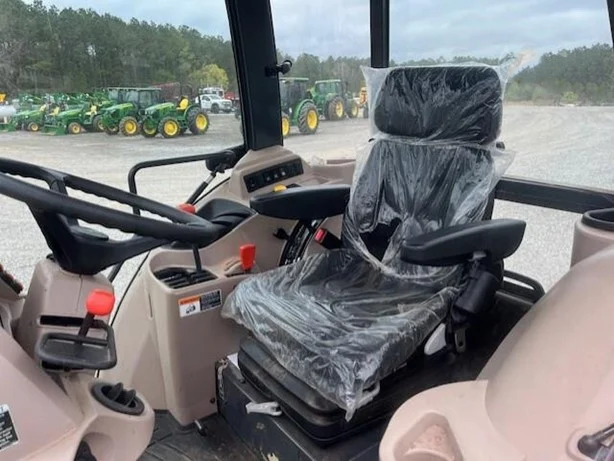

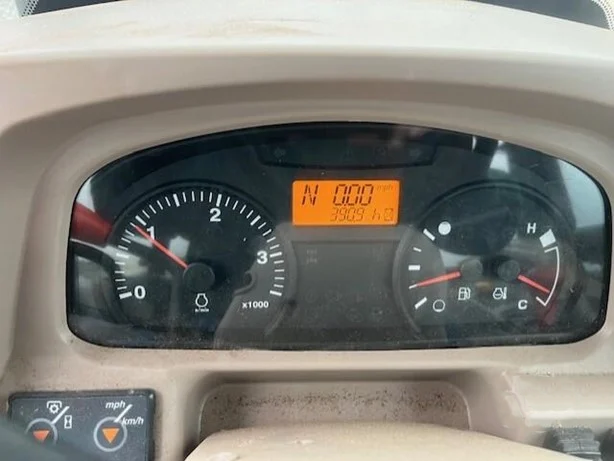

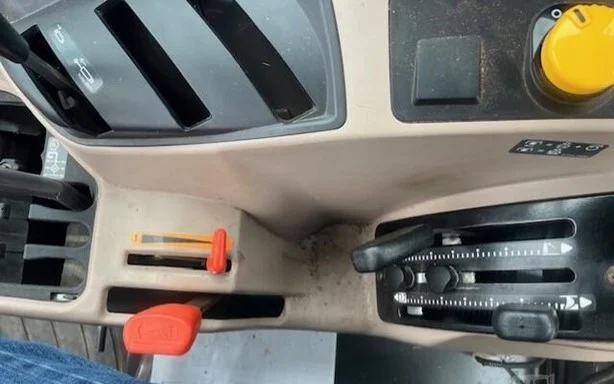

ROPS standard or optional factory-installed Ultra Grand Cab with HVAC, rounded glass curved upper windshield for enhanced visibility (especially loader work), quiet operation, and radio-ready setup. Ergonomic right-side control layout with electronic dash panel. Compatible with Kubota LA1154A front loader.
